ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 Nm] @ 4100 rpm; more than 300 lb-ft of torque from 2000 to 5600 rpm)

• Trailering Package includes trailer hitch
• 7-pin and 4-pin connectors
• Z71 Appearance Package
• Rear axle
• 3.42 ratio (Standard on 4WD (LV3) 4.3L EcoTec3 V6 engine. Available with (L83) 5.3L EcoTec3 V8 engine.)
• Pickup box
• GVWR
• 7100 lbs. (3221 kg) (Requires Crew Cab or Double Cab 4WD models and (LV3) 4.3L EcoTec3 V6 engine.)
• Vehicle control
• hill descent
• Transfer case
• electronic Autotrac with rotary dial control (Included with 4WD models only.)
• Four wheel drive
• Cooling
• external engine oil cooler
• Air cleaner
• high-capacity
• Battery
• heavy-duty 730 cold-cranking amps/70 Amp-hr
• maintenance-free with rundown protection and retained accessory power
• Alternator
• 150 amps
• Underbody shield
• transfer case protection
• Frame
• fully-boxed
• hydroformed front section
• Steering
• Electric Power Steering (EPS) assist
• rack-and-pinion
• Brakes
• 4-wheel disc with DURALIFE rotors
• 4-wheel antilock
• Capless Fuel Fill
• Exhaust
• aluminized stainless-steel muffler and tailpipe
• Tire carrier lock
• keyed cylinder lock that utilizes same key as ignition and door
• Bumper
• front body color
• Bumper
• rear body-color
• with CornerSteps
• Lamps
• cargo area
• cab mounted with switch on center switch bank
• CornerStep
• rear bumper
• Moldings
• bodyside
• body color
• Wheelhouse liners
• rear (Requires Crew Cab or Double Cab model.)
• Grille surround
• body color
• Active aero shutters
• front
• Headlamp bezels
• body-color
• Fog lamps
• thin profile LED
• Mirrors
• outside heated power-adjustable (includes driver's side spotter mirror) (Body-color.)
• Mirror caps
• body-color (With (WGQ) Redline Edition or (WJP) Midnight Edition mirror caps will be black.)
• Glass
• deep-tinted
• Door handles
• body-color (With (WGQ) Redline Edition or (WJP) Midnight Edition door handles will be black.)
• Tailgate and bed rail protection cap
• top
• Remote Locking Tailgate
• Tailgate
• EZ-Lift and Lower
• Radio
• HD
• 6-speaker audio system
• Seat
• rear 60/40 folding bench (folds up)
• 3-passenger (includes child seat top tether anchor) (Not available on Regular Cab models.)
• Instrumentation
• 6-gauge cluster featuring speedometer
• fuel level
• engine temperature
• tachometer
• voltage and oil pressure
• Driver Information Center
• 4.2-inch diagonal color display includes driver personalization
• warning messages and vehicle information
• Windows
• power front and rear with driver express up and down and express down on all other windows
• Visors
• driver and front passenger illuminated vanity mirrors
• Assist handle
• front passenger on A-pillar
• StabiliTrak
• stability control system with Proactive Roll Avoidance and traction control includes electronic trailer sway control and hill start assist
• Airbags
• dual-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; Includes front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob
• to encourage safe driving behavior. It can limit certain vehicle features
• and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire pressure monitoring system (does not apply to spare tire)

• Mileage
• Fuel Economy Est-Combined (MPG): 18
• Fuel Economy Est-Combined (MPG): 19
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): 15.6
• Total Cooling System Capacity (qts): 14.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3950
• Gross Axle Wt Rating - Rear (lbs): 3950
• Curb Weight - Front (lbs): - TBD -
• Curb Weight - Rear (lbs): - TBD -
• Gross Vehicle Weight Rating Cap (lbs): 7100
• Gross Combined Wt Rating (lbs): 12800
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 7100
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 710
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 7100
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1065
• Maximum Trailering Capacity (lbs): 10900
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 3950
• Spring Capacity - Rear (lbs): 3950
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3950
• Axle Capacity - Rear (lbs): 3950
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 46
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.35
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.6 x 0.79
• Tires
• Front Tire Order Code: RBX
• Rear Tire Order Code: RBX
• Spare Tire Order Code: RC4
• Front Tire Size: P265/65R18
• Rear Tire Size: P265/65R18
• Spare Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 18 x 8.5
• Rear Wheel Size (in): 18 x 8.5
• Spare Wheel Size (in): 17 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), On Center: 16.3
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 46.9
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 143.5
• Length, Overall w/o rear bumper (in): 230.03
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 73.90
• Overhang, Front (in): - TBD -
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 141.37
• Cab to Axle (in): 41.50
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.87
• Ground Clearance, Rear (in): 8.87
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.87
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 64.9
• Cargo Box Width @ Wheelhousings (in): 51.03
• Cargo Box (Area) Height (in): 21.10
• Tailgate Width (in): 62.2
• Cargo Volume (ft³): 61.0
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 65.93
• Front Hip Room (in): 60.73
• Second Head Room (in): 38.67
• Second Leg Room (in): 34.63
• Second Shoulder Room (in): 65.80
• Second Hip Room (in): 60.23
• Summary

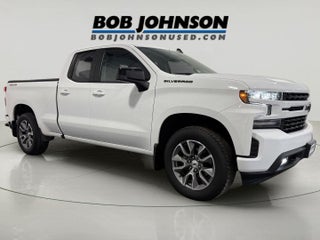

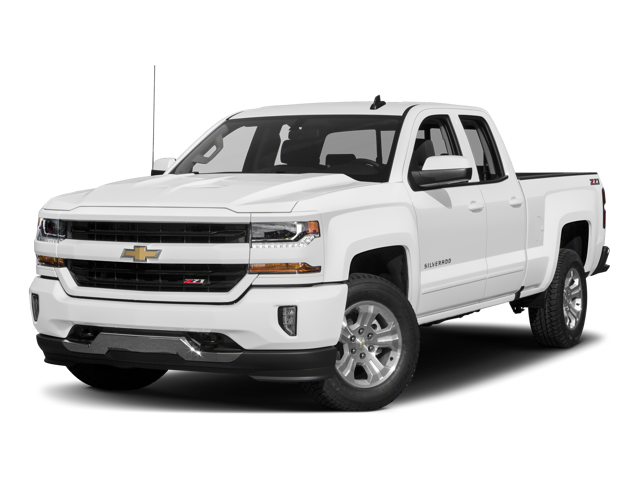

• Vehicle Name: Chevrolet Silverado 1500
• Body Style: Double Cab Pickup
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.3
